EVB-LAN9692-Hallberg-POC (EV22N59A)

The EVB-LAN9692-Hallberg-POC (Microchip P/N: EV22N59A) is a 12-port Ethernet switch EVB capable of running VelocityDRIVE-SP.

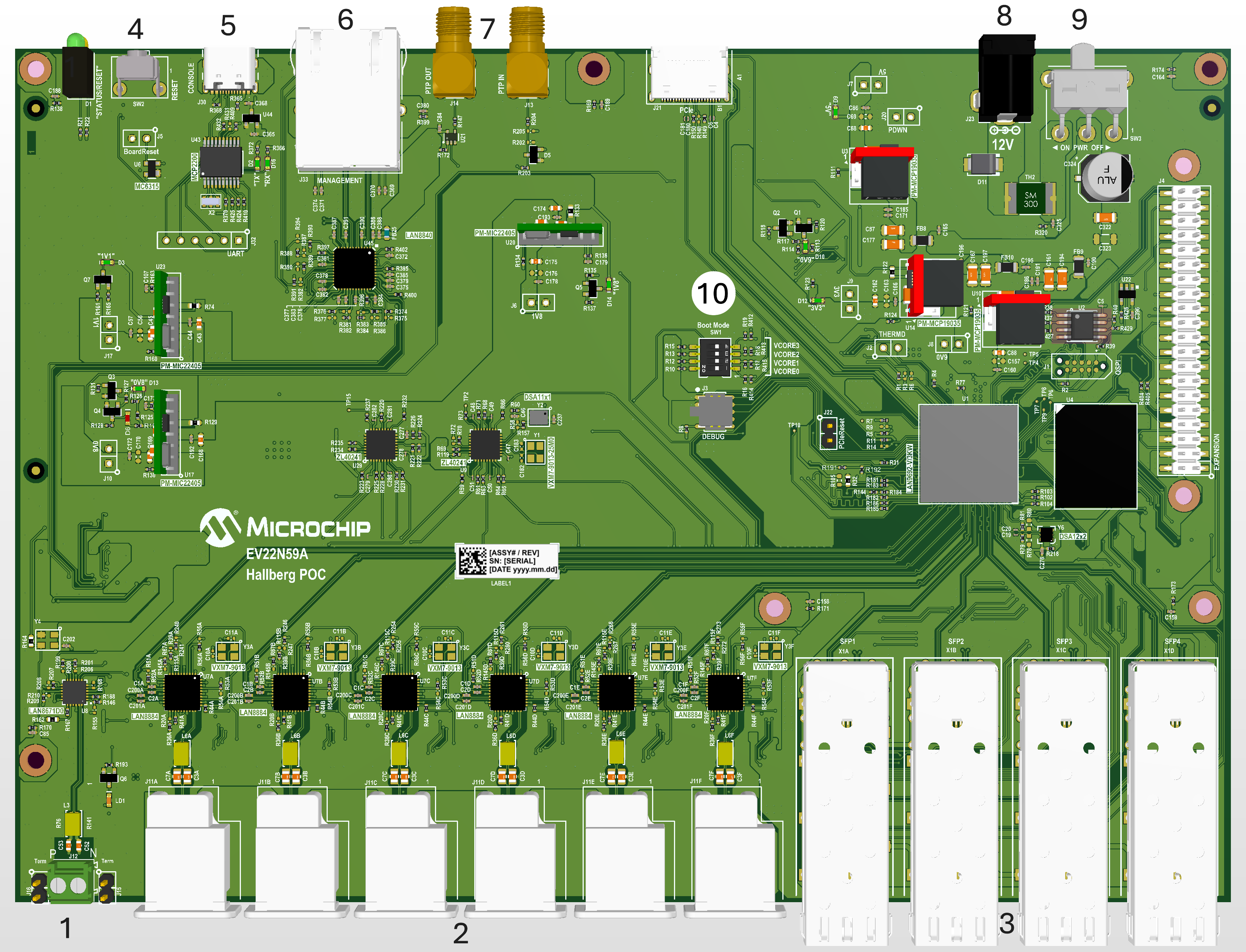

Here is what the board looks like:

evb lan9692 ev22n59a num

  1. 1G single-pair (10BASE-T1S) ports 1

  2. 1G single-pair (1000BASE-T1) ports 2-7

    • Port 2,4 and 6 are PHY clock followers.

    • Port 3,5 and 7 are PHY clock leaders.

  3. 10G SFP+ (10GBASE-R) ports 8-11

  4. Reset button

  5. USB-C UART Console

  6. 1 Gb/s (1000BASE-T) Ethernet port 12

  7. PTP 1PPS in/out

  8. 12V Power supply

  9. Power switch

  10. Boot-mode DIP-switch (strapping modes)

All connectors and controls not listed here are not supported by the VelocityDRIVE-SP Firmware.
