Supported Evaluation Boards

This page and the sub-pages introduce the EVBs in the context of VelocityDRIVE-SP. Use the table below to identify the board of interest:

Image	Name	Key information
	EVB-LAN9662-EndNode (Microchip P/N: EV09D37A)	Port configuration: 2 x 1000BASE-T (1G CU) Links: family, straps, debrick
	EVB-LAN9696-24port (Microchip P/N: EV23X71A)	Port configuration: 24+1 x 1000BASE-T (1G CU) + 4 x SFP+10GBASE-R Links: family, straps, debrick
	EVB-LAN9692-Auto (Microchip P/N: EV09P11A)	Port configuration: 7 x 1000BASE-T1 + 1 x 1000BASE-T + 4 x SFP+ 10GBASE-R Links: family, straps, debrick
	EVB-LAN9698-10port (Microchip P/N: EV89P81A)	Port configuration: 10 x SFP+ 10GBASE-R + 1 x 1000BASE-T Links: family, straps, debrick


Name

Key information

EVB-LAN9662-EndNode (Microchip P/N: EV09D37A)

Port configuration: 2 x 1000BASE-T (1G CU)
Links: family, straps, debrick

EVB-LAN9696-24port (Microchip P/N: EV23X71A)

Port configuration: 24+1 x 1000BASE-T (1G CU) + 4 x SFP+10GBASE-R
Links: family, straps, debrick

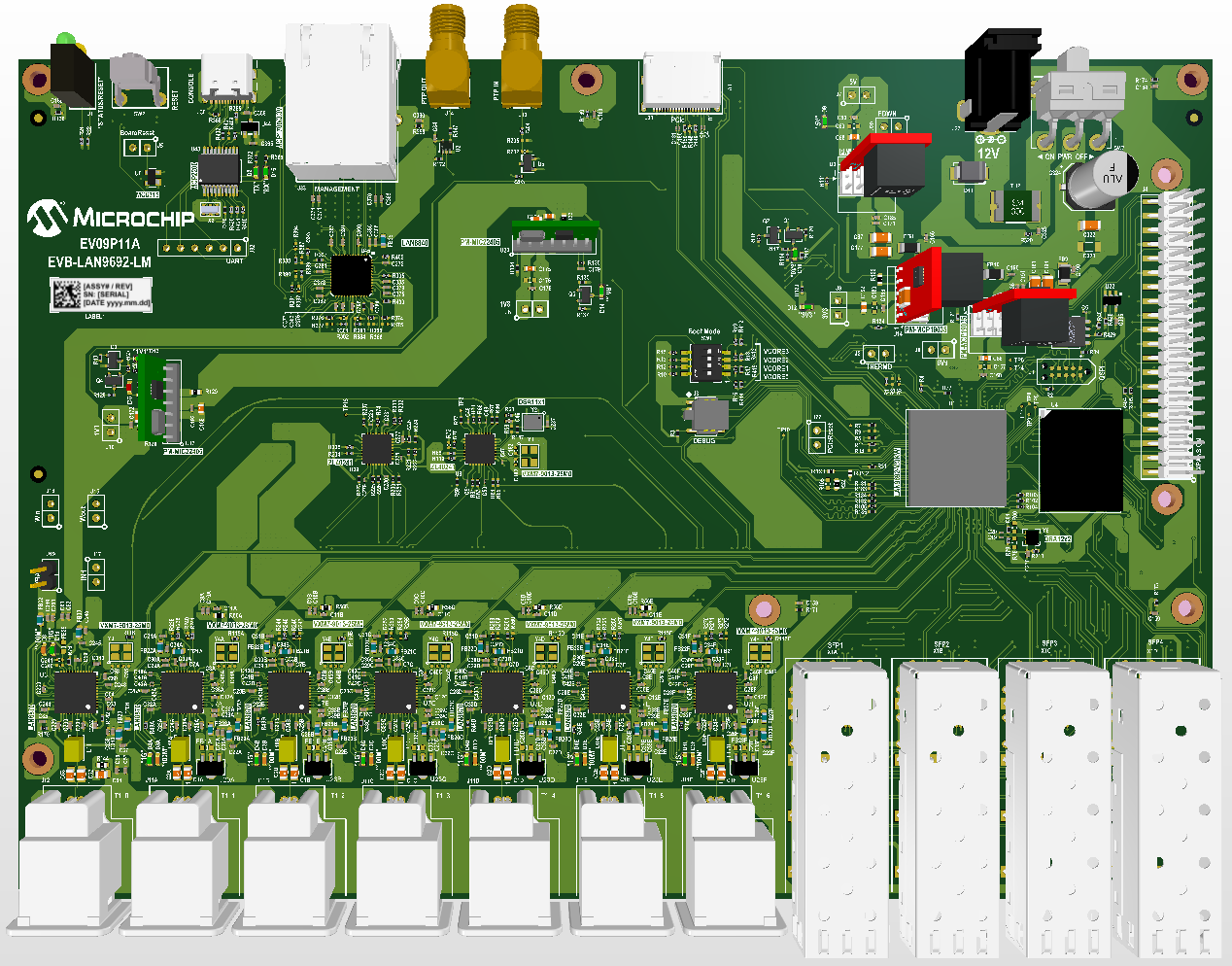

EVB-LAN9692-Auto (Microchip P/N: EV09P11A)

Port configuration: 7 x 1000BASE-T1 + 1 x 1000BASE-T + 4 x SFP+ 10GBASE-R
Links: family, straps, debrick

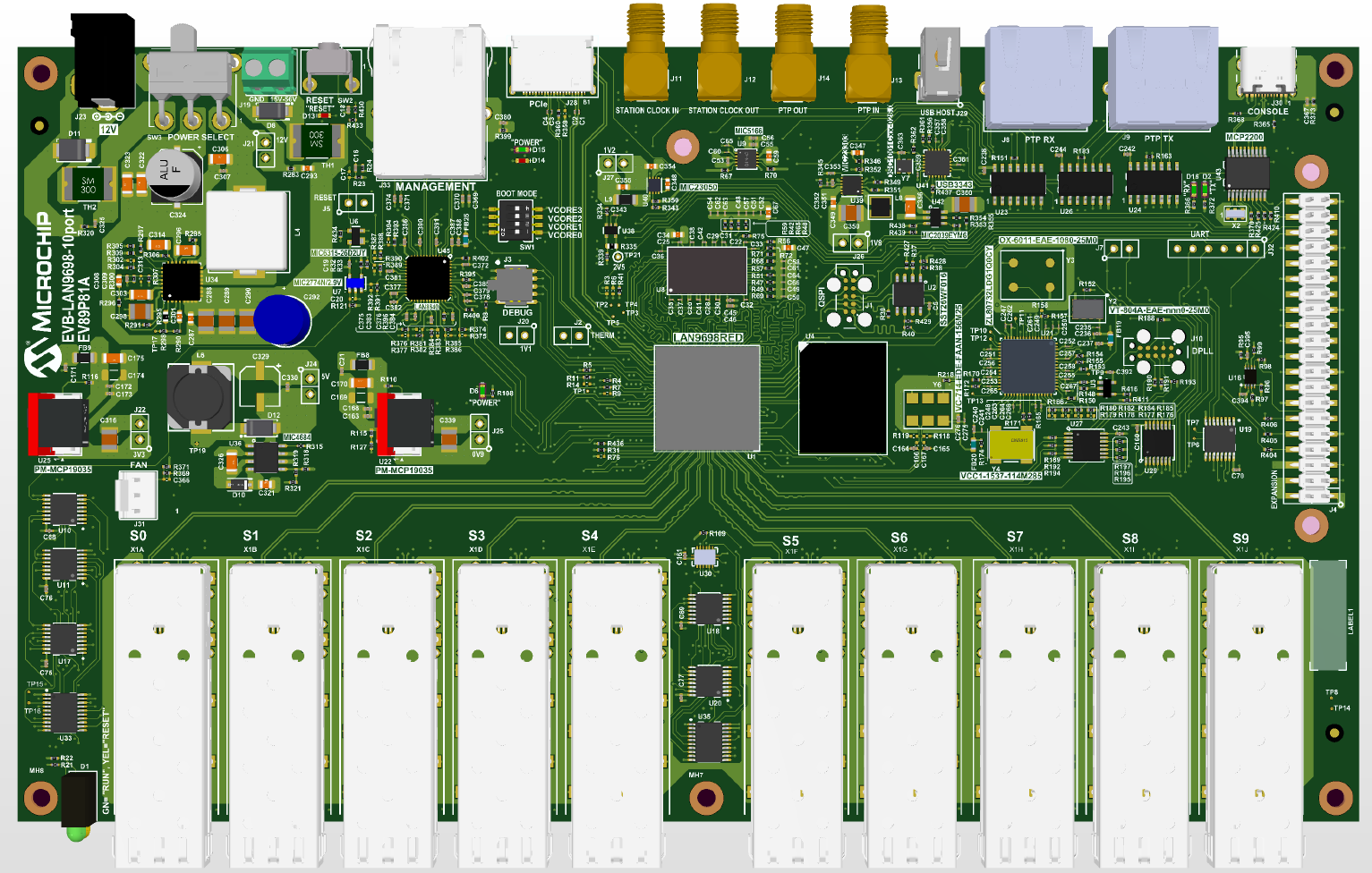

EVB-LAN9698-10port (Microchip P/N: EV89P81A)

Port configuration: 10 x SFP+ 10GBASE-R + 1 x 1000BASE-T
Links: family, straps, debrick

Besides introducing the EVBs themselves, each family also has a bunch of SoC specific material such as strapping pins, firmware files being used, and de-brick instructions.
